On designing street for bicycles
There have been a lot of discussion both online and offline about coming up with bike lanes for Metro Manila. Already, there are examples of pop-up bike lanes in some cities while others have had bike lanes and bikeways constructed years ago (e.g., Marikina and Iloilo). While agencies like the DPWH and MMDA have formed technical working groups (TWG) for bike facilities, the perception is that these are moving too slowly (dragging?) and have not produced any gains in so far as design recommendations or guidelines are concerned. Just how important are such guidelines and perhaps at the beginning, context setting, to come up with suitable designs incorporating cycling (and walking) rather than the usual car-centric set-ups? Here’s another article I am sharing that argues for these street designs:
Jaffe, E. (2020) “The most important bike technology is…street design”, medium.com, https://medium.com/sidewalk-talk/the-most-important-bike-technology-is-street-design-401c94065b5c [Last accessed: 7/26/2020]
People biking to work along the Marcos Highway bridge’s painted bike lane
–
Route 9: Antipolo-Cubao
I keep forgetting posting something about the buses that now operate along the Antipolo-Cubao route. Route 9, as the DOTr and LTFRB have designated this route covers one of 2 routes connecting Antipolo and Quezon City’s older CBD. Route 9 is via Sumulong Highway and Masinag Junction. The older route via Felix Avenue and Cainta Junction has not been revived. Both routes used to be served by jeepneys; many of them the “patok” kind that were known for speeding and risky maneuvers. It seems, at this time, that these will not be allowed to operate again along these routes with the rationalization efforts of the government. Following are photos taken at the Robinsons Antipolo transport terminal, which is where one of the end points of Route 9 is located.
Buses maneuver at the spacious terminal grounds at Robinsons Antipolo.
There are two bus services currently terminating here. One is the P2P bus service between Robinsons Antipolo and Robinsons Galleria, and the other is Route 9 between Antipolo and Cubao, Quezon City.
Many of the buses were “pulled out” from their former routes. The term pulled out is actually inaccurate since public transport operations were suspended during the lockdown.
The transport terminal is an intermodal one that’s supposed to cater to buses, jeepneys, vans and tricycles. There are currently no UV Express vans operating here and traditional or conventional jeepneys have yet to return to Antipolo.
A big part of the terminal is an area reclaimed from a failed amusement park that occupied the corner of this lot. The rides and other equipment were removed prior to the lockdowns.
There are minimal restrictions to the vehicles accessing the terminal grounds. Here you see a taxi and tricycle moving about. Cars may be parked nearby and these (parked cars) were not uncommon before the lockdown as some people practiced “park and ride” with the P2P buses.
EMBC buses such as this one used to ply the Tanay – Divisoria and Tanay – Quiapo routes
G-Liner buses are a familiar sight in Rizal where they are probably the oldest company continuing service since the 1980s. Correct me if I’m wrong but I only remember them being in operation in the 1980s. Before them were Metro Manila Transit Corp. buses and the baby buses that plied the Binangonan-Recto route.
G-Liners now operate two routes from the rationalization program: Antipolo-Cubao and Taytay-Gilmore.
The passenger capacities of the buses and the service between Antipolo & Cubao have been significantly reduced due to health protocols. Thus, buses can only carry perhaps up to 40 or 50% of their seating capacity. I mentioned seating capacity here because of physical distancing requirements and the ban on standees. Previously, a bus left every 5 minutes and their frequency could not cover the demand along the route. Recently, I observed more buses in operation and the addition buses from two more bus companies that used to ply the Fairview-Baclaran and Fairview-Alabang routes. These could probably help ease the supply issues.
More on the Antipol-Cubao service soon!
–
On data on mobility trends
There are actually a lot of data available on mobility if you know how to look for them. One good source is Apple. Yes, Apple has access to thousands of smart phones that allow them to track individuals (oh you didn’t know that?) movements. Here is the link to Apple’s data:
https://www.apple.com/covid19/mobility
And here is a graph showing mobility trends in the Philippines from that resource:
Some politicians and political appointees are now saying that we are in this predicament about COVID-19 because of a lack of discipline. That is bullshit. Many stayed home and/or reduced their movements. And then there’s that study showing 90% wore masks when they go out. No, it’s not lack of discipline that’s the problem but the lack of essential services and goods that are supposed to be delivered by those who are suppose to govern and the deficiencies from the start in addressing the spread of the virus especially from abroad. Perhaps these people criticizing Filipinos should look at their mirrors more closely and look left, right and across from they comfy seats to see what’s wrong with the way government has been handling the pandemic?
–
On the bicycle as the future of urban transport
Here is another quick post where I am sharing an article on the bicycle as the future of transport:
Dans, E. (2020) “Whichever way you look at it, the bicycle is the future of urban transport”, medium.com, https://medium.com/enrique-dans/whichever-way-you-look-at-it-the-bicycle-is-the-future-of-urban-transport-c40157625115 [Last accessed: 7/17/2020]
I’ve posted about this idea before here and on social media. While some people were engrossed or obsessed about self driving cars, I was asking them how this could be the future of transport when all this leads to is more cars on the roads, and perhaps roads designed to accommodate these vehicles. The evidence vs. self driving cars was already there and the pandemic only emphasized how this could not be the future of transport. Instead, we have something more basic and not even motor-powered – the bicycle. Come to think of it, there is also walking. But then the bicycle is more energy efficient and can take you over longer distances than your feet.
–
On tricycle capacity in the time of COVID-19
With the current rationalization and modernization of public transport vehicles and services being implemented by the national government, many jeepneys, mostly the conventional or traditional ones, have been unable to ply their routes again. Along some routes, buses have taken over but have been limited in the number of passengers they could carry due to physical distancing restrictions. But these are mostly for routes and roads that carry people between their residences and workplaces that typically are longer distance trips (e.g., more than 4 kilometers one way). For shorter distance trips, the more relevant mode of motorized transport is the tricycle. The conventional trike in the Philippines is one involving a motorcycle with a side car. Side car designs vary around the country with some seating 4 people (e.g., back to back with 2 facing backward) but usually with only two seats inside the cab. one or two passengers can be accommodated behind the driver on the motorcycle.
New model trikes include the models endorsed by the Asian Development Bank for the e-trike project that is laid out like a small jitney with benches seating 3 to 4 people on one side (total 6 to 8 passengers) and the popular tuktuk designs that seat 3 people at the back. With the quarantine restrictions in place, conventional trikes can only take one passenger inside the sidecar and none behind the driver. Tuktuks can seat 2 behind the driver but with a barrier (usually a plastic curtain) between the passengers.
Conventional or traditional trike with plastic sheet between the driver and the passenger (in the side car).
Tuktuk-type trike with plastic sheet between the driver (in front seat) and passengers in back seat. The back seat allows for 3 people seated together but due to distancing requirement
I have been informed by a former student that certain e-trike models (e.g., BEMAC model e-trikes) are allowed to carry 4 passengers, 2 each on the benches behind the driver who is on the front seat. That still means less passengers than they could usually carry. This would seem to be part of the new normal and will be the set-up for the foreseeable future until perhaps a vaccine for COVID-19 is approved and people get vaccinated. Then, health protocols may be eased to allow for the full seating capacities of public transport vehicles.
–
Alternatives for the delivery of public transport services in the new normal
No, this is not a dissenting opinion on service contracting as proposed by a coalition of transport advocates. Rather, I write about other options or alternatives that can be taken on by the government in collaboration with the different sectors or players involved in transportation. Other options have not been discusses as extensively as would have been desired and ultimately weighed for application.
Allow me to rattle off a few options stated in the position paper by the Transportation Science Society of the Philippines (TSSP):
- Service contracting – which some groups have proposed and lobbied Congress for Php110 billion funding. This implies a government selecting a few among hundreds of bus operators and thousands of jeepney operators – a process that is bound to be controversial; whilst needing the mobilization of a performance audit and monitoring unit in a government agency. Economic literature is replete with studies that subsidy to producer (i.e., operator) produce bad outcomes over direct subsidy to consumers (i.e., commuter). In this regime, financial risks are borne by the government or authority.
- Fuel subsidy – the government was already implementing the Pantawid Pasada Program before ECQ. It incurred Php2.372 billion subsidies in 2019, up by 243% from Php0.977 billion in 2018. At the pump, the fuel subsidy equates to Php1.00/liter discount. Now, the DoTr is proposing a 30% subsidy which it estimates to be Php1,152/PUB and Php366/PUJ. These amounts are NOT commensurate to the theoretical drop in revenues at 50% load limit. Worse, free fuel leads to bad outcomes, as it would encourage higher fuel use and siphoning off to other modes.
- Free Fare – this proposal is intertwined with the service contracting model and may be counterproductive to the objective of social distancing. It is a policy that encourages unnecessary travel and crowding – which the distancing rule seeks to minimize. The government needs only to look on ridership on LRT/MRT on free-fare days against regular working days.
- Direct Subsidy to Commuter – in this scheme, the operator is allowed to increase its tariff by an amount sufficient to compensate for the 50% volume cut. However, the passenger only pays the same fare level that he paid before ECQ. The government pays the difference. When paired with the Automated Fare Collection System (which LTFRB has required under MC-2020-019 dated 14-May 2020), it is the most efficient method, and is immediately implementable. Subsidy is targeted, rather than all-encompassing. It promotes the wider adoption of AFCS on all public transport, not just on MRT/LRT. Senate Bill No.1417 seeks to fund, among others, for transportation vouchers; this could be disbursed rapidly via the AFCS card
Another idea is the purchase of new model jitneys to replace old jeepneys – this is an idea that I have posted and have discussed with former and current officials of the DOTC/DOTr before (matagal na itong idea na ito). You purchase say 1 modern jitney at 1.6million pesos/vehicle (note: other models are more expensive, exceeding 2M per unit) and replace the old, conventional jeepneys. It will not be free but payment for the vehicle will be deferred until after the transport crisis brought about by the pandemic clears out. The old jeepneys would be part of the collateral and perhaps still have some utility in them to be used for other purposes (freight?). Think about it. How much pork does your typical congressman and senator have? They could probably use this to modernize public transport in their respective constituencies!
It is important to have a lot of ideas out there instead of just one that is being pushed as the only option. In truth, there should be a combinations of solutions as there will not a be single one applicable and effective to all cases and situations. At this time, I am not sure that these options are being considered by the DOTr. The agency and the LTFRB are proceeding with rationalization and modernization simultaneously, at their own pace and at their own terms, taking advantage of the conditions and situations brought about by the pandemic. While it seems to be the ‘perfect’ opportunity to do rationalization and modernization, it might be immoral and inappropriate given the circumstances that doomed a lot of families who depend on public transport operations for their livelihood.
–
On mass transit and active transport
I recently gave a talk on transport in the new normal. There are a lot of materials that you can refer to if you want good visuals for a presentation. It helps to capture the attention and maybe the imagination of your audience, which in this case was varied. While I assume many to be in the physical, chemical & social sciences, and engineering, I knew that there were also people from media and those who were just interested in the topic. And so I made sure there were a lot of infographics mixed in with bullet points to drive the message clear about mass transit systems being the backbone of transport in highly urbanized cities, conventional transit like buses and jeepneys supplementing and complementing these, and active transport enabled and encouraged as a safe option for many.
I wasn’t able to include the following graphic shared by a friend advocating bicycle use especially for work and school trips. The following graphic comes from TUDelft, which is among the major universities in the forefront of research in transit and cycling. Clicking on the graphic will take you to their Facebook page and more links to their programs.
Note the essential information relating bicycles and transit in the graphic. Do we have similar data in the Philippines (or at least for the National Capital Region)? I hope this stirs interest for research work. There are a lot of topics to take on including even data collection to capture the information required for substantial studies on cycling, transit and their relationship.
–
Whatever happened to those ‘enhanced’ pedestrian crossings?

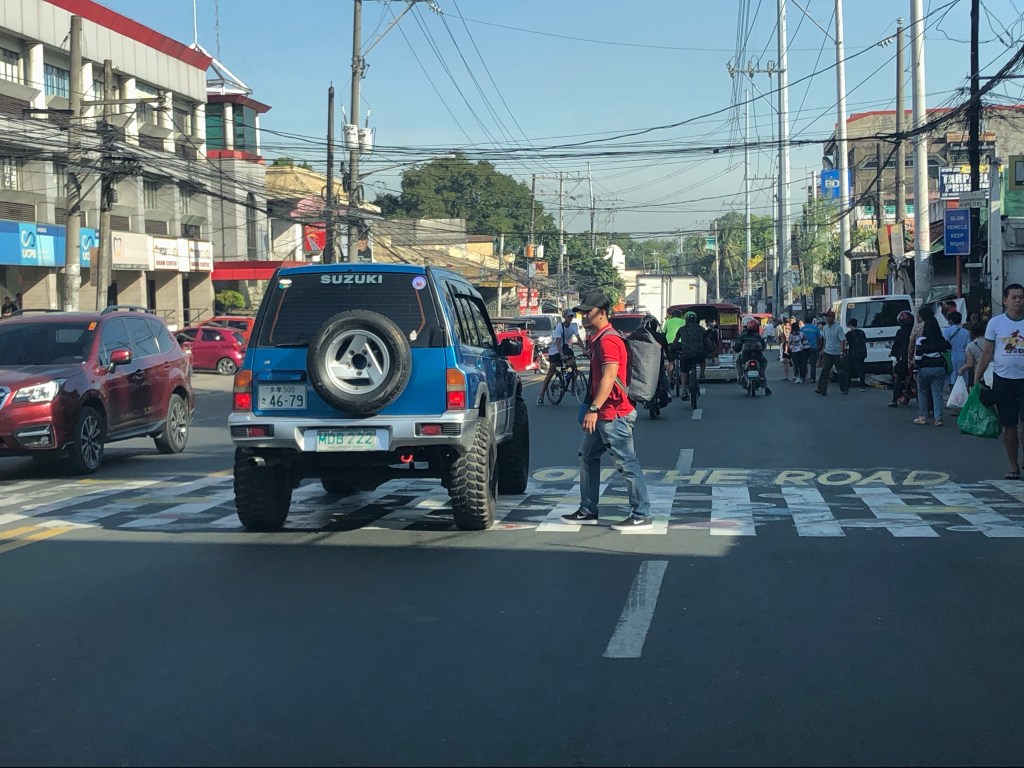

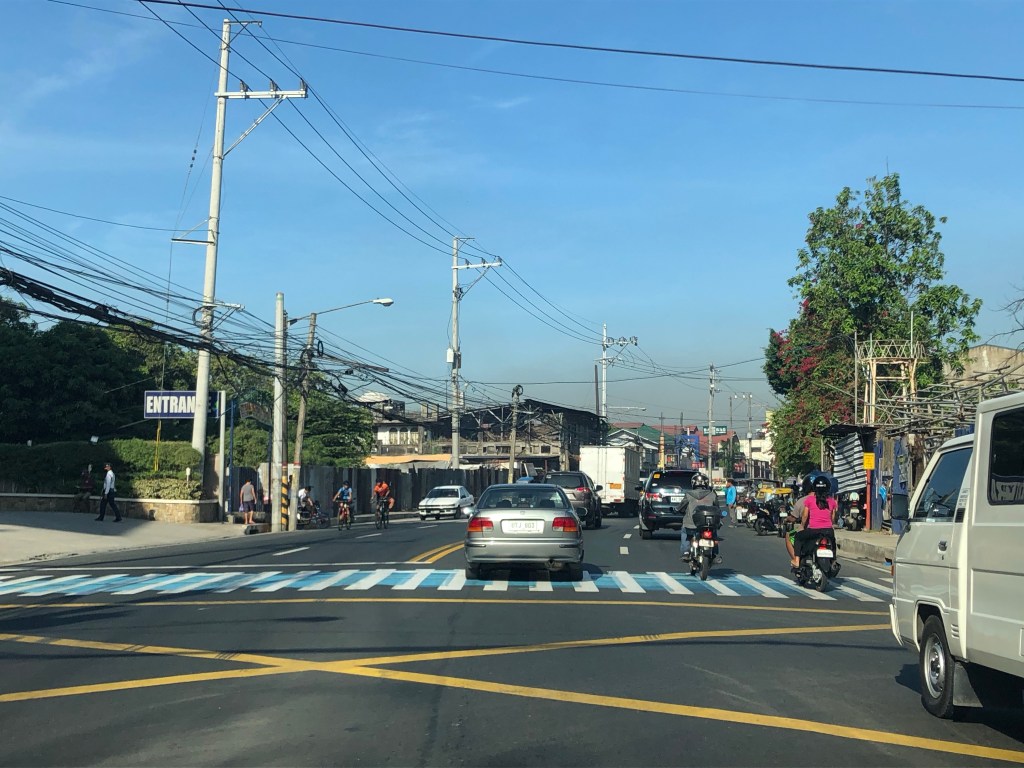

Before the lockdowns, a lot of people seem to have become excited with what a private company did as part of their PR campaign (I’m certain about this because their ads feature these.). That is, they painted on the existing pedestrian crossings in Antipolo City along major roads such as Sumulong Highway and the Sumulong Memorial Circle. While coordination with the LGU was done, there seems to be none with the DPWH considering these are national roads and any matter concerning them are under the agency’s jurisdiction through their District Engineering Office. The following photos were taken prior to the lockdown and as you can see (if you were objective) there’s nothing really notable about them though they appear to enhance the existing crosswalks.
The artwork is practically invisible to motorists especially those on cars whose drivers’ eyes are lower than those driving SUVs, jeepneys, buses or trucks (i.e., larger and taller vehicles).
There is no strong evidence that such works enhance road safety.
There is no strong evidence that such works enhance road safety and you can check on this by doing either a quick or even an extensive search for literature proving significant impact. I guess the key here is to also install other devices such as a speed table or rumble strips for motorists to feel that they are approaching a pedestrian crossing. Also, perhaps instead of just painting on the crosswalks, they could have painted so as to widen the crosswalk. Then they could have increased the visibility for pedestrian crossings. That said, they should also have used the standard paints for these facilities that make them visible at night and could have been more resistant to weathering.
–
Why cycling or bicycles are good for the economy?
You saw that meme shared in social media where they say “why bicycles are bad for the economy”? There’s some humor there but it doesn’t necessarily convince many people to support cycling or biking over motor vehicle use.
Here goes one and note the logic:
“Cycling or bicycles are good for the economy because…it helps reduce car use/dependence. That means less dependence and expenses to fossil fuels. That means more money available to the household for more important stuff like food, homes and education.”
Can you come up with something like that?

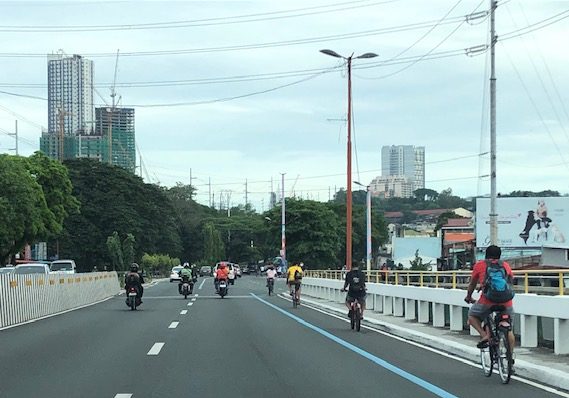

Workers on bicycles crossing the Marcos Highway bridge from Marikina towards Quezon City.
–
PNR Espana Crossing
Prior to the lockdown, I was able to take a few photos of the PNR line crossing Espana Avenue in Manila. These now appear to be somewhat nostalgic as I am unsure when I can go around again without (or with reduced) fear of getting infected by COVID-19.

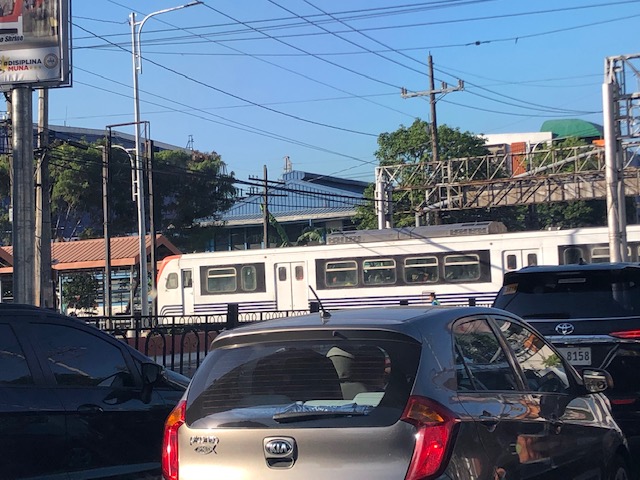

Commuter train crossing Espana Avenue towards the Espana Station of the PNR line

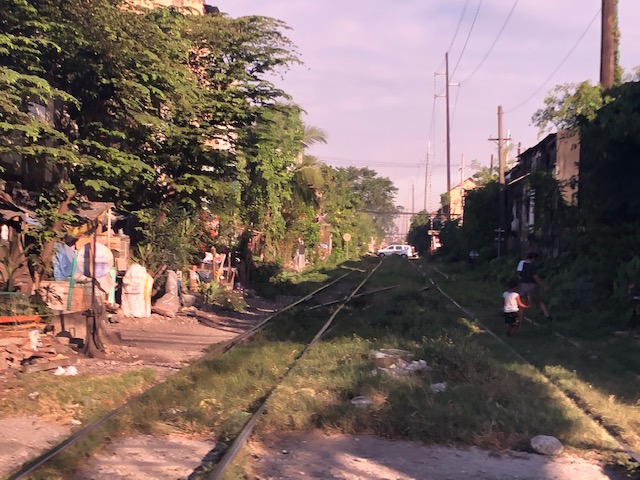

Crossing the PNR line towards UST, I got this photo of the PNR line showing the informal settlements along it

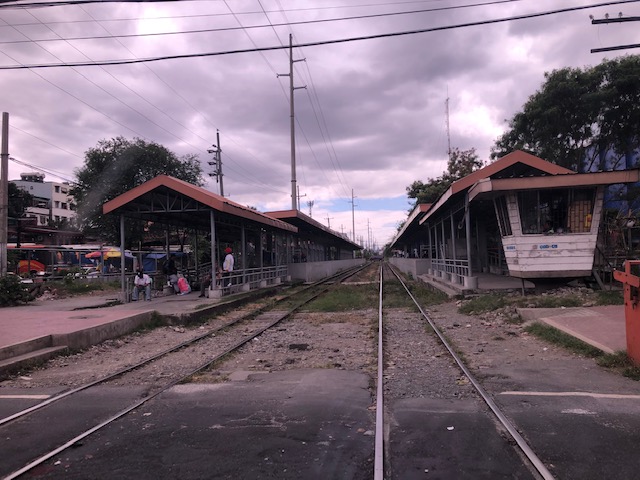

On the way back, I made sure I had the opportunity to take this photo of the PNR Espana Station
The PNR was supposed to have resumed operations, and implementing physical distancing and other measures to reduce the risk of COVID-19 infection. Here’s a photo they posted prior to the resumption of operations when Metro Manila went into GCQ status:

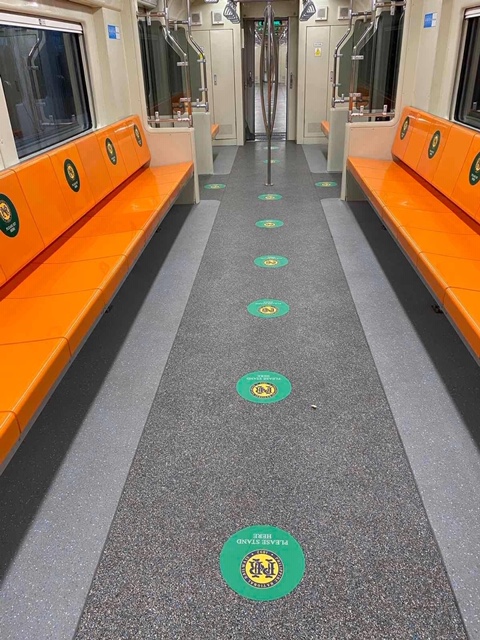

The photo shows where passengers may sit or stand inside a PNR train. I have yet to see a photo of the actual conditions inside the train.
–
