Quezon Avenue is part of Radial Road 7 (R-7) and stretches from the Elliptical Road (also technically part of R-7) in Quezon City to the Welcome Rotonda in Manila, where it connects with Espana Avenue. It has intersections with several major roads including EDSA (C-4) and Araneta Avenue (C-3). The following photos show the sections from Elliptical Road to EDSA. The following photos were taken along the Manila-bound side of the highway showing features along the sections including pedestrian footbridges and the underpass along Quezon Avenue that bypasses junctions with Agham Road and EDSA.

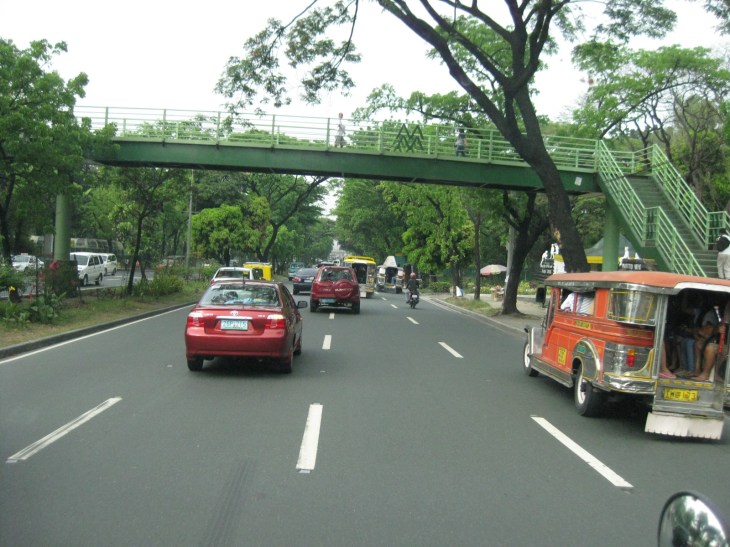

Overpass connecting the Lung Center side (left) with the Parks & Wildlife side (right)

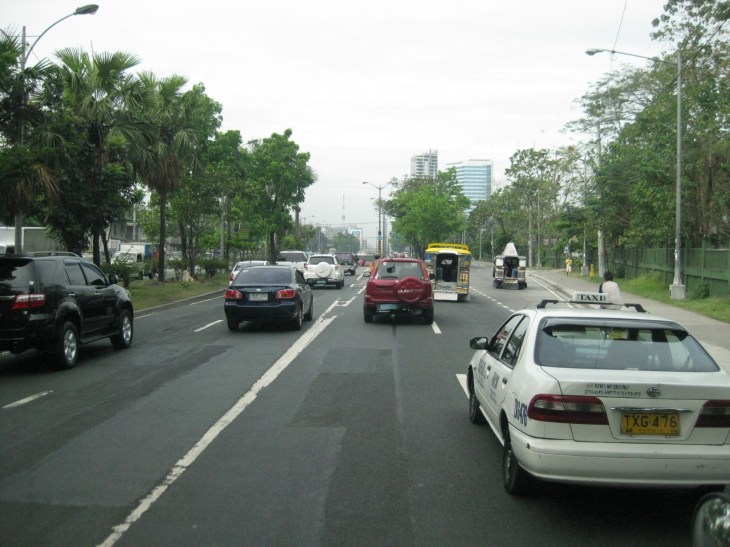

This section of Quezon Ave. has 4 lanes per direction and these are divided by a wide median island. Pavement is of excellent condition with clear markings to guide motorists.

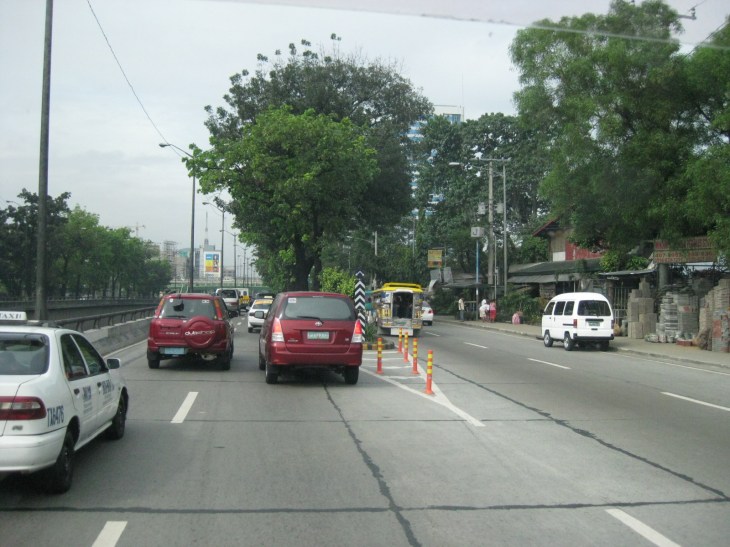

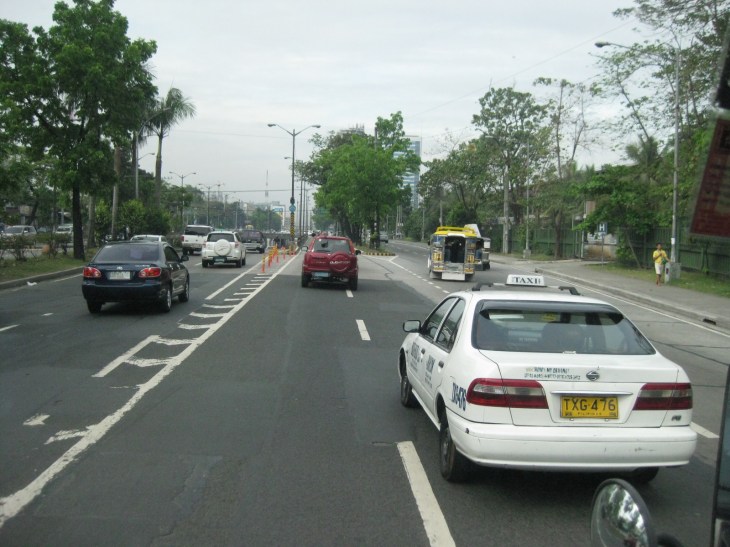

Approach to the underpass (left lanes) and Agham Road (right lanes)

The section approaching Agham was widened by taking land from the Children’s Hospital (right). The trees on the island that defines the service road generally used by vehicles turning right to Agham is visible downstream in the photo. Chevron markings and the orange poles delineate the path to the underpass.

The view from the other side of the road showing the service road island (with the trees) and the  delineators for the underpass

Vehicles approaching Agham Road – the vehicles on the left side are already along the underpass. The 2-lane service road is on the right

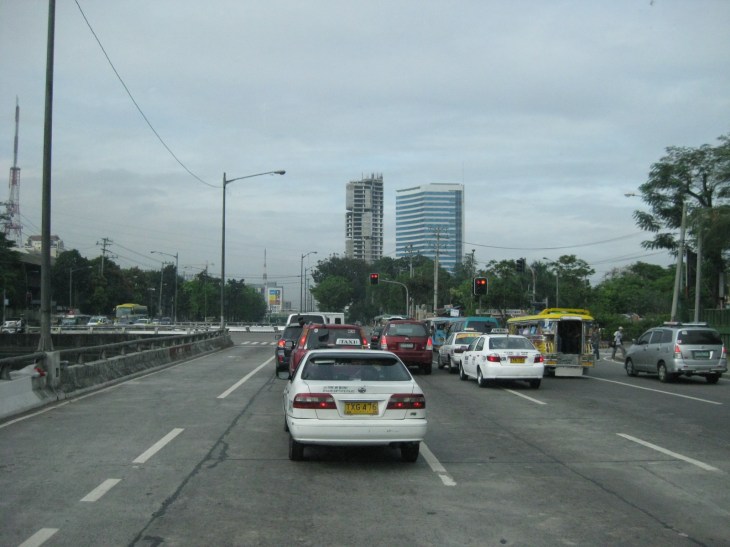

Agham Road approach along Quezon Ave. – the junction is signalized and has a total of 5 lanes along the approach

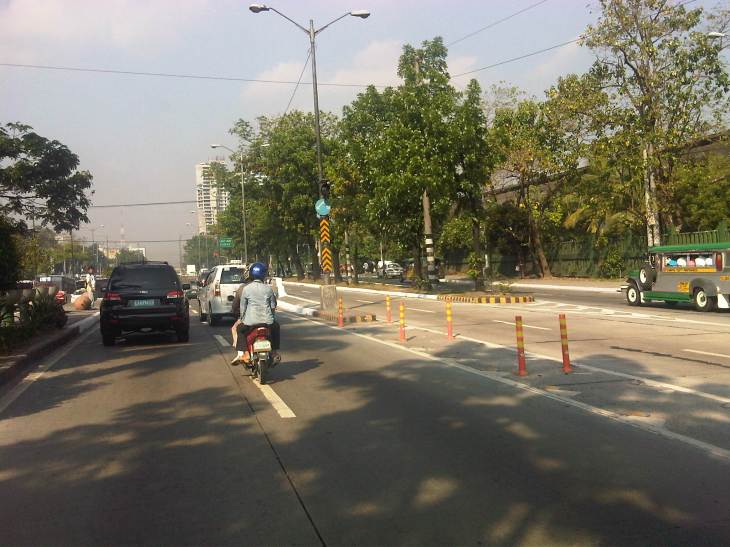

Plastic barrier at the approach – such should be removed/cleared from the highway and especially at the intersection as they are hazards to road users

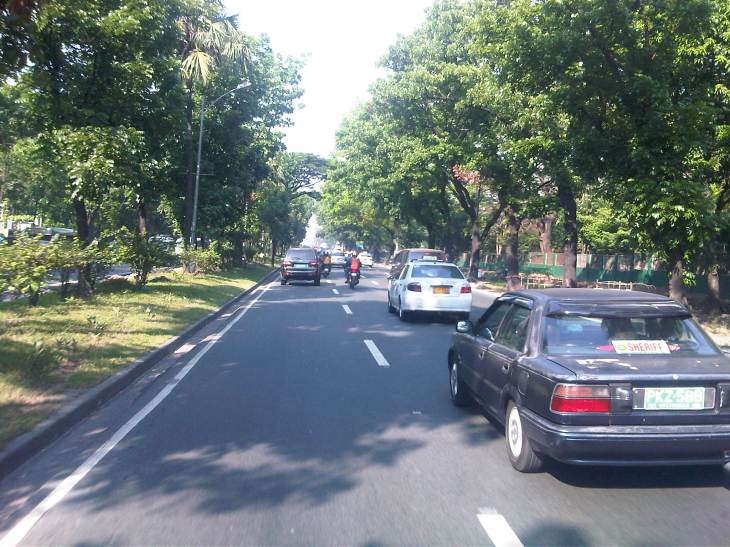

Past the junction with Agham Road, the highway is again divided by the island lined with trees forming two 2-lane channels. Public transport is supposed to take the right-most lanes.

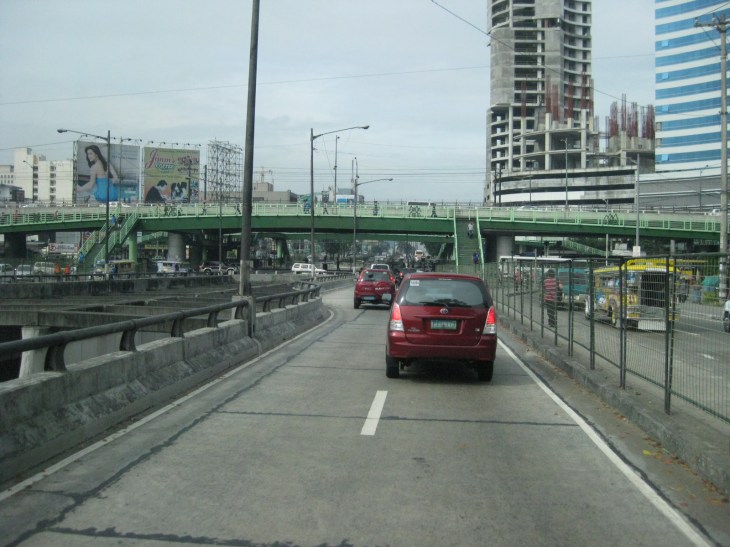

Approach to EDSA where all vehicles must turn right. Vehicle proceeding along Quezon Ave. must take the U-turn slot under the EDSA overpass just a few meters after turning right at the junction. Obscuring the view of the vehicular overpass along EDSA is the pedestrian footbridge just ahead. Note the barriers to prevent jaywalking in the area.

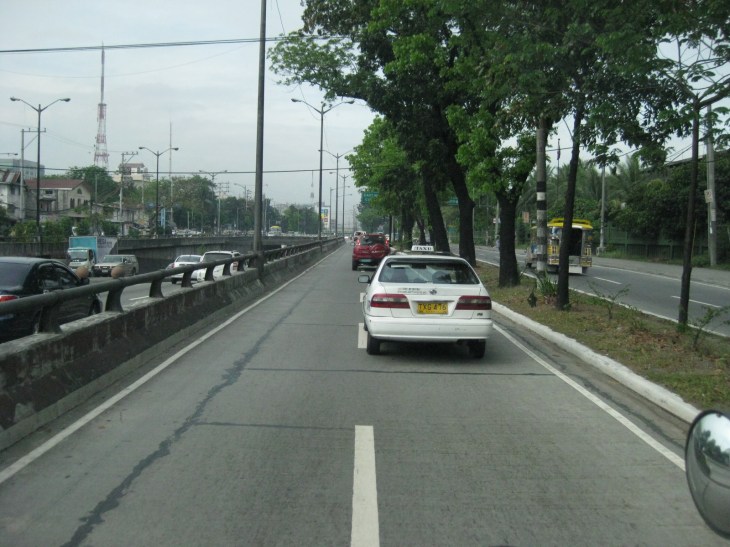

Underpass section along Quezon Ave. approaching the junction with Agham Road

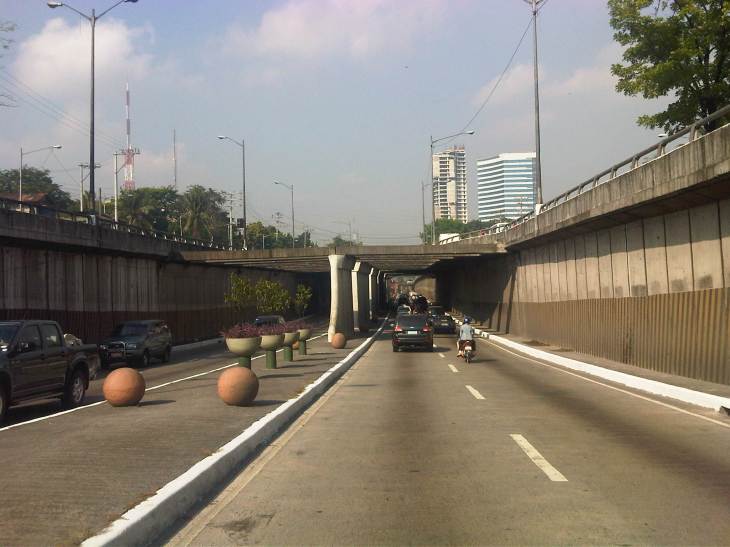

Underpass section between Agham Road and EDSA

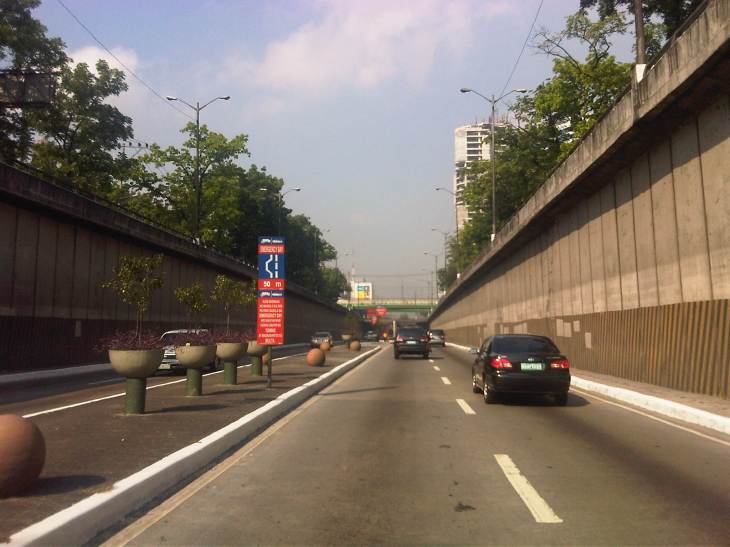

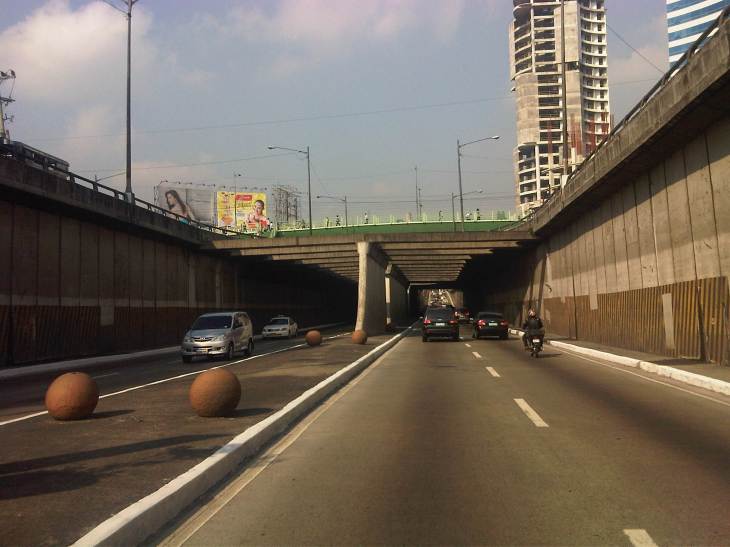

Underpass section approaching the junction with EDSA – at the junction, there is essentially 3 levels of roads: the underpass along Quezon Ave., the junction itself, and the overpass along EDSA
