“No-good” practices in pavement engineering and traffic management?

January 2018
S M T W T F S
« Dec   Feb »
 123456
78910111213
14151617181920
21222324252627
28293031

Archives

We did some studies a few years ago on the state of pavement engineering in the Philippines. Among the things we found was that conditions for the proper curing of concrete used for pavements of national roads are not usually met. This applied mainly for both Portland Cement Concrete Pavements (PCCP), which was the main subject of our study but also applied to Asphalt Concrete Pavements (ACP) as well as we documented practices for both types of pavements.

Last year, the traffic along Ortigas Avenue Extension was hellish for quite some time between the Rosario Bridge and Cainta Junction. One time, we eventually inched our way past De Castro, and lo and behold this scene while it was raining:

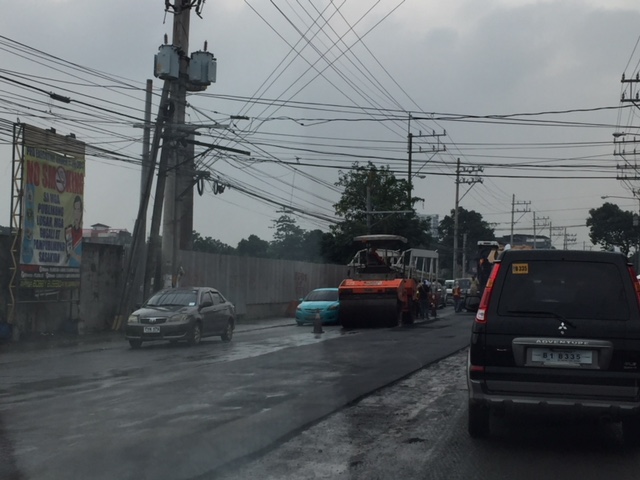

Rollers (pison) making a pass at the asphalt laid by a paving machine. Note the wet roads due to the heavy rains that afternoon.

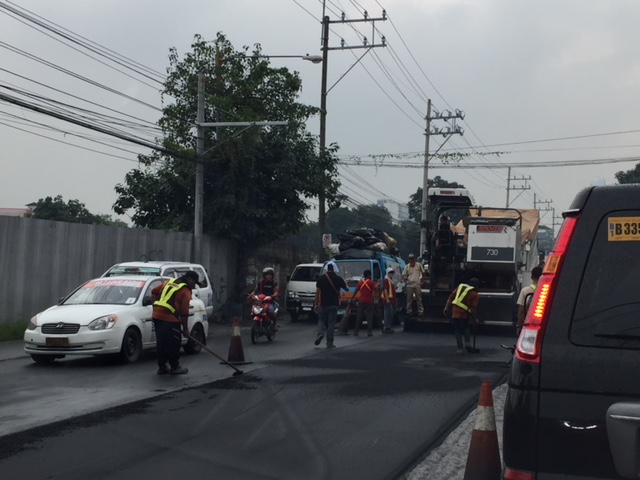

Workers patching up the edges of the overlay as a foreman and what appears to be engineers directing them. That’s a asphalt paver in action. Note the already wet asphalt? That will have implications over the short term; often resulting in distress way ahead of the intended life of the ACP.

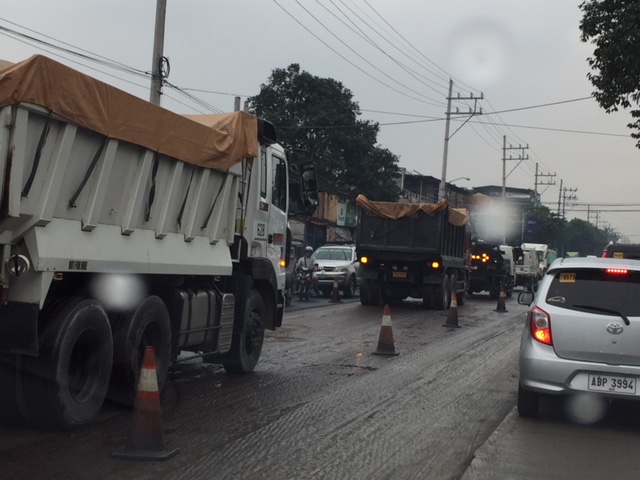

Dump trucks lined-up carrying aggregates for the asphalt overlay; occupying one lane of Ortigas Avenue Extension.

The queues from the westbound side stretched from Countryside to Junction. Since the intersection was already affected by the spillover, the section from Junction to Brookside was also congested.

The situation I described above is something that could have been managed other ways but would still result in severe traffic congestion as at least 2 lanes were occupied by construction (one being paved and another for staging). There were also other incomplete drainage works that exacerbated the situation. So as far as traffic management goes, I thought the contractor did the best it could given the conditions. However, I question the asphalt overlay work during heavy rains. The implications is the reduction in the intended or design life of the ACP (i.e., reduced life most likely due to the rainwater and wet conditions with the bitumen not being able to bind the aggregates as effectively as desired. And so that means the aggregates tend to loosen up more quickly resulting in the deterioration of the pavement and lead to more costly maintenance of roads.
