Airport parking
I’ve been to Metro Manila’s airport terminals quite frequently lately. It’s only March but I’ve traveled to Singapore twice, once using NAIA Terminal 2 for a Philippine Airlines flight in January, and again last February but using Terminal 3 for a Cebu Pacific flight. I’ve gone to Terminal 1 several times as I either dropped off or fetched the wife who flew in and out via either Singapore Airlines or Tiger Airways. Every time I went to any of the three airports, and especially when I was fetching someone, I couldn’t help but make some observations about the parking.
I’ve been to many airports including the huge modern ones in our neighboring countries. I must admit that I haven’t had the chance of using their parking facilities first hand. Most of the time I use public transportation from and to the terminals like when I use Changi or Suvarnabhumi. I have seen their parking buildings from the outside though. And I can say that my impression is that they are sufficient for their purpose whether their users be well wishers, people fetching relatives or friends, or travelers opting to leave their vehicles to return for them on their ways back.
I must say that the parking facilities of the three NAIA terminals can be viewed as a progressive case considering that there have been steady and obvious improvements when comparing features from Terminal 1 to 3. I won’t get into the technical aspects as qualitative assessment from fellow users like friends and colleagues point out that NAIA 1’s parking seem to be always full as with Terminal 2’s. The latter is quite unusual as it is used exclusively by PAL. Terminal 3 should have the largest capacity and this was expected for a terminal whose designers should have learned from the lessons of Terminals 1 and 2. However, in my recent trips to all three airports, my experiences have been quite the contrary in terms of finding a parking slot that is convenient enough; that is, not so far a walk from the respective terminal buildings.
It was surprising for me to find good parking slots in my most recent trips to NAIA 1 and 2. Meanwhile, parking at Terminal 3 seemed to be laborious especially considering the linear layout of the open parking facility. In that last sentence, allow me to emphasize open and add to it “outdoor” since Terminal 3 is supposed to have a multi-level parking building. This was supposed to be one of its features distinguishing it from 1 and 2. The problem is that airport officials have not given the go signal for this multi-level facility to be operational. This causes problems to airport users considering that there is a significant number of vehicles left by their owners for their return trips. These include overnight parkers who probably took a local trip with a schedule that prevented them from returning the same day. All these vehicles are parked along what should be a lane dedicated for traffic circulation. In fact, the line of parked vehicles extend all the way to the ramp leading to the entrance to the parking building.
Perhaps it is already time to open the parking building to the general public. It doesn’t take a genius to see that parking at NAIA 3 is already insufficient given the travel characteristics of its users. Operational costs including maintenance and security should not be a problem since users will be charged fees according to their parking durations. Also, a variety of services may be offered to users including cleaning like the ones offered in shopping malls and even quick repairs for those encountering some trouble with their engines or tires. It shouldn’t be so difficult to come up with a system for parking management that would enhance NAIA 3’s services. And it should be done now and not later.
I have other impressions of parking in the other terminals I have had the opportunity to use across the country including those of international airport in Mactan, Cebu and Davao. But these terminals do not generally serve as many people as Manila’s three terminals do so their assessments would have to be tempered against this backdrop.
Tools for traffic enforcement
The MMDA recently acquired speed guns to enable them to measure vehicle speeds and catch violators of speeding regulations. A case in point is the ongoing efforts to reduce road crashes along Commonwealth Avenue in Quezon City. Part of the effort is the enforcement of the 60 kilometer per hour speed limit that is applied to all vehicles. This, of course, is a simplification considering that ideally there are different speed limits for different types of vehicles if Philippine laws are to be reviewed. One problem with Commonwealth is that it is a very wide road with 8 to 10 lanes per direction depending on the section from Fairview to the Elliptical Road. All types of vehicles seem to be guilty of “over-speeding” but of particular concern were and are the buses that also have tended to change lanes quite frequently despite the maneuver being unnecessary.
Most private vehicles are also probably guilty of speeding at many points along the avenue. The wide road is indeed very tempting for cruising at high speeds much like what a driver may routinely do along expressways. The problem, of course, is that the avenue is not an expressway where access is restricted and there are practically no chance or instances of conflicts with pedestrians, vendors or typical public transport operations. And then there are also the ubiquitous median openings that have replaced at-grade intersections. These facilities have encouraged weaving and, arguably, aggressive driving in order to be able to maneuver to the nearest practical U-turn slot.
But going back to the speed guns; these are very handy tools for traffic enforcement. Based on what I saw on TV, the speed guns allow the operator to take a photograph of the guilty party’s vehicle and save this for downloading later at the office. The downloaded photos are then processed into a form (summons) that is sent to the owner of the vehicle who is assumed to be the driver of the vehicle caught by the speed gun’s camera. The person is given 7 days to pay the penalty/fine (PhP 7,500 accroding to the news reports) at the MMDA or at an accredited bank. If the person is unable to pay the fine, the MMDA will forward the violation to the LTO for flagging or tagging of the vehicle used. This tag will serve as an alarm for traffic law enforcers in case the vehicle is involved in another incident.
The speed gun is not an inexpensive tool and yet it is a very useful one if only to instill discipline to drivers in the form of speed management. Speeding is one manifestation of irresponsible or reckless driving, especially when combined with other maneuvers like frequent lane changing. It is also one of the most difficult to enforce since measurements are required and evidence must be strongly tied to a particular vehicle so that the match is “beyond reasonable doubt,” as lawyers may say.
Speed guns like the ones acquired by the MMDA will surely contribute to curbing speeding violations and reducing the incidence of crashes. However, this is currently limited to Commonwealth and there is definitely a need to acquire more instruments to enable the agency to enforce speed limits along other roads including perhaps EDSA and C5. At the very least, speed limits should be enforced along all the radial and circumferential roads. This is particularly important during the night time and probably the early mornings when many road crashes are associated with speeding violations that are obvious for the characteristic loss of control by the driver. The acquisition and proper use of additional units will go a long way into putting order to traffic along our roads and this order can be equated to ensuring that our travel ways will be safe for all users.
Upgrades: the Ayala BRT
The Ayala Land Inc. (ALI) has been issuing press releases about their plan to put up a Bus Rapid Transit (BRT) system for the Makati CBD and the Bonifacio Global City. The system will serve both the old financial center in Makati and the rapidly emerging one in Taguig, connecting the two via Ayala Avenue-McKinley Road and Gil Puyat (Buendia) Avenue-Kalayaan Avenue corridors. It is a project that is long overdue although the buses serving the Fort have shown us at least what a higher capacity mode of transport can do if managed properly.
The Fort Buses load and unload passengers at designated stops. They follow traffic rules and regulations enforced more strictly inside the Global City. Many of the newer bus units also happen to have layouts that are more appropriate for city operations. The Mercedes Benz coaches are designed such that they can accommodate more passengers as they have ample standing space and there are only enough seats for passengers who may actually need them like the elderly, pregnant women, persons with disabilities, and perhaps those who are burdened with heavy bags or packages. The doors of these units are also designed for more efficient fare collection and discharging of passengers, with the narrower front door accommodating boarding commuters who are already queued at bus stops and the wide two door rear egress allowing for efficient alighting. Surely, an automated fare collection system such as those using smart cards or other machines will be in place in the near future and greatly improve the operations of these buses. But the most significant feature, it seems, of the Fort Bus is the compensation scheme for its employees, particularly its drivers. Unlike most bus companies, Fort Bus drivers are given a regular monthly salary and reportedly enjoy benefits much like regular employees in typical companies or offices. This feature, I believe, is what makes it work in the first place and what is required for a transformation in public transport services as it does away with the rabid competition that is the derivative of a commission-based or “boundary” system compensation scheme that is used for both buses and jeepneys.
Considering the calls for more efficient as well as more safer public transport systems, let this Ayala BRT be a test case for what to do with transport systems that should have been phased out a long time ago (jeepneys) along corridors or routes that demand higher capacity vehicles. Public utility vehicles with low capacities and perhaps low quality of service should be replaced by more efficient modes especially along arterials. Also, all the elements are there for a potentially successful PPP in transport. You have a major player from the private sector (Ayala) offering to put up a system that it has studied and designed over the past few years. You have two CBDs in Makati and Taguig that currently serve as the present and future financial centers. And you have the challenge of doing away with an inefficient transport system. Though there sure will be compromises that are not necessarily palatable (e.g., re-routing PUJ and PUB lines) the government should start realizing that it should be more deliberate and even unforgiving when it deals with the issue on PUJ and PUB franchises here.
The local governments of Makati and Taguig should cooperate with Ayala to make this work for these LGUS should put aside certain interests including those pertaining to PUJ and PUB operators and drivers, many of whom may be their constituents and comprise a significant part of their voting populations. The LGUs should facilitate discussions including those dealing with livelihood and othe social issues that are the province of local governments. The Land Transport Franchising and Regulatory Board (LTFRB) should get out of its shell and make a stand now considering the opportunity for public transport transformation. And its mother agency, the Department of Transportation and Communications (DOTC) should support this stand, all out, if only to show that it is indeed committed to reforming and modernizing public transport systems in this country.
A BRT finally being realized for Makati and Global City will indeed be a showcase. We just hope that it will be a showcase of an efficient transformation of a public transport system from an outdated to a modern and efficient one rather than a showcase of futility and ineptness on the side of those in government. As they say, something has to start somewhere. A modern, efficient public transport system that is deserved by Filipinos may just start in Makati and Taguig, and with a BRT that may actually mean “better rapid transit.”
Clarifying some issues on truck overloading
Following is a Position Paper prepared by the Institute of Civil Engineering and the National Center for Transportation Studies to clarify some issues pertaining to truck overloading. The position paper was presented to the Technical Working Group under the House of Representatives Committee on Transportation, which is handling the issue.
1. Background
This position paper was crafted to clarify some issues pertaining to truck overloading and the implementation of the national law (R.A. 8794) from a technical standpoint, and based on an independent assessment of the concerns put forward recently.
Among the issues raised were on the maximum axle load of 13.5 tons, the computed maximum gross vehicle weight (GVW), and the implications of their enforcement on the transport of goods and the trucking industry.
In the absence of extensive data from measurements on actual roads and bridges in the Philippines, reference is frequently made to tests and studies by the American Association of State Highway and Transportation Officials (AASHTO), which are adopted by many other countries.
2. Maximum axle load
For benchmarking purposes, an 8.2-ton axle is referred to as the equivalent single axle load or ESAL. One (1) ESAL is equivalent to a damage potential of 1.0 based on road tests conducted by AASHTO. Damage potential increases very rapidly as the axle load increases. The maximum axle load of 13.5 tons is equivalent to 60 times the damaging potential of an ESAL or 8.2-ton axle load.
The designation of a 13.5-ton maximum already takes into consideration the practice of overloading. (Note that the original maximum single axle load was 8.0 or 8.2 tons.) The 13.5 tons is based on studies conducted by the DPWH back in the 1990s (Philippine Axle Load Study or PALS), which determined the maximum single axle load that may be allowed without compromising the integrity of structures such as bridges. The study measured the weights of trucks throughout the country to establish typical weights for different types of trucks.
For tandem axles, a different maximum load is prescribed due to established findings by AASHTO that two closely spaced axles have a much greater combined damaging potential than two single axles that are far apart. To keep the damaging potential in check, AASHTO has established that in the case of tandem axles, each axle in the tandem should have a maximum load that is 20% less than the maximum allowed for single axles. Thus, the maximum axle load for tandem axles in the Philippines is 10.8 tons, for a total of 21.6 tons for the tandem.
A similar process of reduction is applied to tridem axles and so on, where the damaging potential changes as a function of the proximity of the axles to each other.
3. Maximum gross vehicle weight
The maximum gross vehicle weight (GVW) computation is partly based on the maximum single axle load. Thus, it is clear that a higher maximum single axle load leads to higher maximum GVW.
The GVW is computed based on the optimum distribution of loads for different types of vehicles. This optimum distribution considers the maximum allowable axle loads as discussed above (AASHTO, 1987) as well as the loading characteristics of bridges, for example as as detailed in the AASHTO LRFD Bridge Design Specifications (2004).
Further, the optimum loads also take into account the stability of the vehicle as it travels along highways and bridges.
The experience in the U.S. where a compromise was reached between government and the private sector concerning maximum GVW is possible because the weights are based on a maximum single axle load of 9.1 tons and the optimum distribution of load for different types of trucks.
4. Consequences of overloaded vehicles
In the previous sections, the impacts of overloading on road infrastructure such as pavements and bridges were taken into consideration. Overloaded vehicles, particularly trucks, can have detrimental effects on highway safety and traffic operations, too.
Highway safety and traffic operations
Overloading would particularly have impacts on the following handling and stability aspects for trucks, affecting safety in highways:
- Rollover threshold
- Braking
- Steering sensitivity
- Low-speed off-tracking
- High-speed off-tracking
Meanwhile, impacts on traffic operations include:
- Speed on upgrades
- Expressway/highway merging, weaving, and lane changing
- Downhill operations
- Intersection operations
- Traction ability
- Longitudinal barriers
The above factors have been analyzed and are the subject of a special report by the Transportation Research Board of the U.S. (TRB, 1990). It has been established, for example, that involvement in fatal road crashes increases as the GVW range increases. Also, it has been established that increased truck weights lead to greater reductions in speed and difficulties in merging, weaving and lane changing, and require greater sight distances for safe stopping.
Modification of trucks
The modification of trucks here pertains to the addition of at least one axle with the objective of increasing the GVW while also decreasing the loads of the axles, in order to comply with maximum axle limits.
Any modifications on trucks, especially the addition of axles, should comply with traffic safety standards including those pertaining to handling and stability. Thus, modified trucks should comply with the specifications of the manufacturer or with established standards, if any, for the modification in question.
Any modifications should also be subject to inspections. Problems will arise if there are no standards. In such cases, the manufacturer or experts in the industry should be consulted. The LTO should defer to the recommendations and disapprove any modifications that are not complying with standards or recommendations by qualified persons especially the manufacturer.
In the absence of comprehensive studies on such modifications, data on road crashes or breakdowns (e.g., flat tires, broken axles) need to be collected in order to establish their frequency, determine how serious these tend to be, and ascertain what the crashes or breakdowns are attributed to. This would require detailed information on crashes and breakdowns over a period of, say, 2 to 5 years for statistical significance.
5. Conclusions and Recommendations
The 13.5 tons designated as the maximum single axle load in the Philippines already incorporated the practice of overloading and thus becomes non-negotiable considering that the DPWH has already taken into consideration the maximum loads that can be withstood by highway structures especially bridges in the country. This maximum single axle load is notably higher than the allowance in the US and most other countries.
The following are recommended for further consideration:
- State the allowable maximum axle loads in terms of single axle, tandem axles, tridem axles and so on, in order not to create confusion on the interpretation of the allowable maximum loads.
- Establish standards, type approval system, and monitoring system for truck modifications, in order to ascertain compliance with safety and stability standards.
- Conduct studies on actual axle loads and GVWs on a more regular basis, say every 5 years, by the DPWH, in order to establish a database from which allowable maximum axle loads and GVWs may be updated in aid of legislation.
- Conduct impact assessments.
The U.S. Department of Transportation (2000) recommendations that may be relevant in the impact assessments include:
- Infrastructure costs – including implications on road pavements, bridges and geometrics
- Safety impacts – including crash/accident rates, public perception, vehicle stability and control, and vehicle comparisons
- Traffic operations – impacts on road capacity and speeds
- Energy and environment – impacts on fuel consumption and vehicle emissions
- Shipper costs – impacts on cost of transporting goods
Impact assessments are essential in order to establish directions for determining the benefits and costs attributed to various scenarios that are currently being discussed at the TWG level. Such benefits and costs will serve as inputs in aid of legislation to improve on the provisions of R.A. 8794 and its Implementing Rules and Regulations.
Design standards particularly for road pavements and bridges in the Philippines are mainly based on AASHTO standards and specifications. The AASHTO standards and specifications are based on AASHTO design vehicles along with their prescribed weight/load distributions. It follows, therefore, that anyone adopting the AASHTO design standards and specifications like the DPWH should also adopt the AASHTO design vehicle specifications. Otherwise, the application of standards and specifications for design will be flawed, resulting in sub-standard infrastructure.
As a general rule, if the Philippines is to adopt a different set of load distributions, maximum axle loads, and gross vehicle weights for its trucks, the country should likewise develop or revise its design standards and specifications to match local experience or setting. This would require comprehensive studies to be led by civil engineering experts in the Philippines and patterned after similar studies conducted elsewhere including the United States.
6. References
AASHTO (1987) Guide for Maximum Dimensions and Weights of Motor Vehicles and for the Operation of Non-Divisible Load Oversize and Overweight Vehicles, Washington, D.C.
AASHTO (2004) LRFD Bridge Design Specifications, 3rd Edition, Washington, D.C.
Department of Transportation, U.S. (2000) Comprehensive Truck Size and Weight Study, Federal Highway Administration, Washington, D.C.
Transportation Research Board (2007) Legal Truck Loads and AASHTO Legal Loads for Posting, NCHRP Report 575, National Cooperative Highway Research Program, Washington, D.C.
York, J. and Maze, T.H. (1996) Applicability of Performance-Based Standards for U.S. Truck Size and Weight Regulations, Semisequicentennial Transportation Conference Proceedings, May 1996, Iowa State University Institute for Transportation.
Acquisitions
The last time the National Center for Transportation Studies (NCTS) was able to benefit from the acquisition of equipment for research and extension work was in the mid-90’s when the last of the big ticket items like the Horiba mobile air quality monitoring equipment were delivered. These items were donated by the Government of Japan through the Japan International Cooperation Agency (JICA). At the time, there was a strong JICA presence at the Center that included several experts and visiting professors because of the project that transformed what was previously the Transport Training Center (TTC) into the NCTS.
Many of the donated equipment eventually showed signs of wear and tear as a lot of researches employed them; some sparingly and others extensively. Of course, there were items such as the mainframe computer, that rapidly lost relevance and value due to the much rapid developments in computers. The problem with big ticket items, as we later found out, was that it was quite expensive to maintain and even operate them. This was especially true for the Horiba, which cost a lot because of the calibration gases required for field experiments and the costly repairs at a time when components had to be shipped to Japan and back because there were no qualified technicians in the Philippines. It was okay back then when JICA maintained a presence at the Center since the experts were able to use their budgets or apply for support for repairs directly to JICA. It became so much difficult later when, after the NCTS Project was concluded, it became just too difficult to get support for equipment repair. After almost 10 years of submitting applications and justifications for repairs or replacements, and promises by JICA experts assigned to national agencies, we practically gave up on the matter and resigned ourselves to the prospect of never getting such important tools in the foreseeable future.
In 2007, however, hope was reborn in the form of the Engineering Research and Development for Technology (ERDT) program supported by the Philippines’ Department of Science and Technology (DOST). The ERDT involved a consortium of the top universities in the country led by the University of the Philippines Diliman. It was an ambitious yet realistic program that had the best intentions of giving R&D in engineering a much needed boost. Among the essential elements of the program was the upgrading of facilities at UP that led to the construction of new laboratories and the acquisition of modern equipment to encourage relevant researches. The Institute of Civil Engineering would be acquiring a shaking table for earthquake engineering research, recent-model hydraulics equipment, and long delayed upgrades to construction materials testing machines.
In the case of its Transportation Engineering Group, the latter’s affiliation with the NCTS led to the proposals for acquiring equipment that would allow for more progressive studies on Traffic and Highway Engineering. Among those in the wishlist that were approved and have been delivered are a portable digital axle weighing equipment and a portable particulate matter monitoring system. Also approved was equipment that would finally upgrade and revive the Center’s mobile air quality measurement and monitoring system. In fact, the equipment intended for air quality measurements will also benefit the Institute’s Environment and Energy Engineering Group.
Such equipment are vital if the University is to be at par with the best in the region and perhaps, if sustained, in the world. The fact that we have been left behind is an understatement and we cannot pursue relevant and progressive researches if we do not have the necessary tools to implement programs and projects. True, we probably have the brainpower to do research considering many have been trained at the best institutions abroad, yet unless we are able to create tools and things straight out from the power of our minds, we are limited and will just end up frustrated about not being able to undertake the research and extension that we are supposed to do, whose outcomes may just spell the difference if this country of ours is to move towards progress and a more prosperous future for its citizens.
Valentine’s traffic
Valentine’s Day or, to be exact, Valentine’s night is perhaps among the busiest in terms of traffic in many cities. Traffic is often comparable to that experienced during the Christmas season. This is attributed to an increase in the activities during this day that generally includes dating. Malls and restaurants are usually full of couples or families celebrating the day of hearts regardless of whether it is a weekday such as the case this year when Valentine’s is on a Monday.
Parks and other recreational places are also full of people who celebrate love by being with their dear ones. There are also concerts scheduled today and the days preceding and succeeding the 14th. Still popular among Filipinos are aging artists who can still belt out favorite songs from yesteryears including the haunting “Foolish Heart” and “Beauty and Madness.” Other artists have already performed ahead of the 14th since the preceding days happened to be during the weekends.
The congregation of people at the malls, restaurants, recreational areas and concert venues often results in traffic congestion in the vicinity of these facilities. I won’t even mention another place where traffic typically peaks this time of year. Parking may also be difficult due to the traffic generating nature of Valentine’s Day. Getting a taxi ride may also be challenging though trying to get a jeepney or bus ride may not necessarily be more difficult than on a regular Monday. Taking a taxi after having dinner on this day is considered a special trip and taxi are popular since they are a substitute to a private car.
I know this and other such variations in traffic during the year and it helps a lot when planning routes considering that one needs to avoid roads that are typically congested. This is the sort of information that needs to be provided for travelers in order to reduce congestion along roads that would otherwise be avoided for their association with traffic generators.
Ortigas traffic
Ortigas Avenue traffic is very familiar to me. For one, I have used the road since childhood because it was the most direct route to and from school. We lived in Cainta and I went to school for 11 years in Mandaluyong. Before that, I even have memories of the section of Ortigas Avenue where Valle Verde phases are now located being carved quite literally from the adobe mountain that it was back in the mid 1970’s. Ortigas was the only access for those living in the east, particularly the Antipolo-Cainta-Taytay-Binangonan-Angono towsn of Rizal Province, for quite some time. Marcos Highway was still a dirt road and Marikina and Cogeo were somewhat out of the way. Meanwhile, Ortigas was already an important corridor as it led to Antipolo, an important religious and popular recreational site.
As the populations of the Rizal towns I mentioned increased, mostly due to their proximity to Metro Manila and being popular for residential developments then as now, Ortigas became congested. The avenue itself was widened but as any traffic engineering textbook will tell us, the bottlenecks were really the bridges. And I also remember the Rosario Bridge across the Pasig River being widened twice, both before the Manggahan Floodway was constructed. I experienced the impacts of both widening endeavors and did not enjoy having to wake up earlier than when I usually did because of the horrific traffic. It was worse, I guess, when the Manggahan Floodway was being constructed and there were too few options as to alternative routes. In fact, there were too few bridges across the floodway and Pasig River.
Nowadays, traffic congestion along Ortigas Avenue seem much worse than before. This I get from my siblings who still use the corridor as part of their routes to their workplaces. I trust in their assessment considering that my brother went to the same Mandaluyong school I attended and my sister attended another exclusive school in Pasig. My sister’s husband attests to the worsening traffic as he’s also lived at a residential area along Ortigas. From firsthand observation, I can also validate that Ortigas is worse these days than say 10 and 20 years ago.
The counterflow scheme along Ortigas is not new. In fact, my father and our school service drivers knew about this and would often time their trips to coincide with the scheme so that they can drive almost continuously to their destinations in the morning. Back then, I remember that the counterflow scheme was in effect for 10 to 15 minutes at the 0630, 0700, 0730 and 0800 times. It was also actually a regulated one-way scheme and was called thus since it benefited vehicles traveling along the outbound (from Rizal) direction. Inbound traffic were stopped at strategic points along the avenue including Rosario Bridge.
Such schemes are possible only when there is a dominant direction during the peak hours. In the case of Ortigas the directional distribution before was practically 90% outbound in the morning peak. A one-way, counterflow scheme was possible and practical for an undivided road. There were no medians or island to prevent vehicles from moving over to the opposing lane and back. That was then and at a time when I suppose that there were less friction along the avenue. Road friction, particularly those caused by public utility vehicles stopping for passengers, is more serious these days as the number of PUVs have also dramatically increased to address the demand for travel. Only now, there seem to be more informal terminals and longer dwell times at strategic points along Ortigas. These cause the bottlenecks that are also complicated by Ortigas now having median barriers along its length.
I believe congestion can be significantly alleviated by developing and implementing a simple dispatching system for PUVs along strategic points like the designated loading and unloading zones at either ends of the Manggahan and Rosario bridges. The dispatching system should be implemented along with a strict enforcement regime to ensure quick boarding and alighting times and prohibiting PUVs from spilling over and occupying other lanes, that often results in blockage of general traffic. Perhaps, a counter-flow scheme may be re-evaluated and become unnecessary. This recommendation comes in the heels of a survey we conducted along Ortigas only yesterday, February 10 in Manila, where I personally experienced PUVs making a terminal out of the outbound lanes before the Manggahan bridge and effectively blocking outbound traffic along the avenue. I can imagine the frustration of those caught in traffic along Ortigas and its implications along the extension and the Imelda and Bonifacio Avenues from Cainta Junction. The result of that blockage and the implementation of a counterflow around 0715 is shown in the following two photos I took.

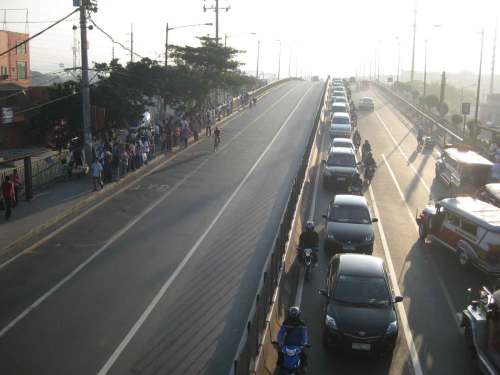

Figure A: Image downstream along Ortigas Avenue (to Rosario Bridge and C5)

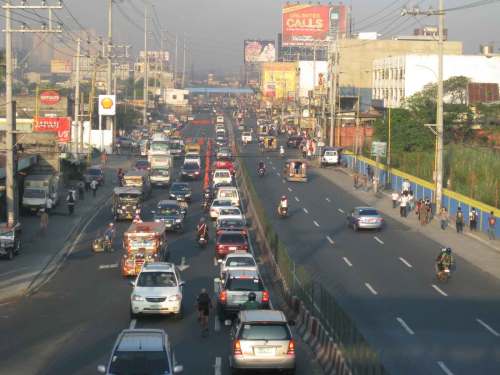

Figure B: Image upstream along Ortigas Avenue (from Cainta Junction)
It is clear from the photos that private vehicles were the ones who benefited from the counterflow. However, it is interesting to see that the outbound lanes were practically empty especially along the Manggahan Bridge. This clearly shows that there is actually enough road capacity but that it is not utilized (and counterflows were required) because of the blockage caused by PUVs upstream of our position. This is another strong case for going back to the basics in as far as traffic engineering and management is concerned. It does not take a PhD degree to see what’s wrong in the photos and certainly an advanced degree is not required for a solution to the problem.
Ningas Cogon
After focusing on one negative trait, I didn’t expect to be writing immediately about another. Again, I do this in the context of transport and traffic, and to drive home the point that we really need to go back to the basics in as far as solving transport and traffic problems in this country is concerned. Ningas cogon refers to how a type of grass burns when set on fire. There is initially an intense burning of the grass but after a short time it dies out. This behavior of the burning is often alluded to when describing efforts that are not sustained and especially those that showed enthusiasm (and therefore promise) only at the start. It is also associated with an initial show of interest that eventually and shortly wanes for one reason or another.
Only two weeks back I was writing about Commonwealth Avenue and how it was called a killer highway. At the time, I was hopeful that the renewed effort to impose discipline among motorists and especially public utility vehicle drivers and pedestrians would result in a significant improvement of safety along the highway. The initial results seemed to be encouraging, with a dramatic decrease in the number of road crashes and deaths in the first few days. I even had several opportunities to observe the efforts of enforcers, the combination of MMDA, PNP and QC personnel, to keep PUVs along their designated lanes and remind motorists and pedestrians to follow rules and regulations. I was pleasantly surprised, for example, to see vehicles “slow down” to 60 kph instead of the expressway speeds they usually attain along Commonwealth. At the Philcoa area near Commonwealth’s junction with the Elliptical Road, PUVs were being guided through the loading and unloading area and violators were quickly apprehended by MMDA and PNP personnel closely watching the traffic.
Meanwhile, I read a few newspaper columns giving mixed reviews about the program. One column in particular from a major daily mentioned that the effort lasted only a few days and that traffic reverted back to pre-discipline zone times. My reaction was one of disappointment, not for the government but for the columnist whom I thought came up with a premature conclusion, given that changing motorist and pedestrian behavior and attitudes along a major thoroughfare would take time. I did mention though in my previous post that enforcement should be firm and sustained in order for it to be successful and enduring. Also, I was already wary of the tendency for such programs to go the way of others before it – ningas cogon.
Last Sunday, I drove along Commonwealth on my way to visit my in-laws in Novaliches. I decided to do an experiment using a simple method that I learned when I was a student at University and which I also teach my students in undergrad civil engineering. In what is called a floating car technique, I attempted to travel according to the speed limit of 60 kph. I also tried my best to keep my lane, only changing when it was necessary. I also tried to count how many vehicles would pass me, indicating how many traveling my way were faster than me and therefore over-speeding.
The first thing I noticed when I entered Commonwealth from University Avenue was that buses and cars were again zipping by me and so I didn’t bother anymore to count those passing me. I did maintain my speed so I could have a reference as to how fast the other vehicles were relative to mine. Approaching the Fairview Market area, I also observed that people were crossing almost anywhere and that some barriers have been moved to allow jaywalkers to cross the median. Meanwhile, the pedestrian overpasses were all crowded and I could see the entire length also occupied by vendors. Not an enforcer was around to bring order in what was a chaotic marketplace scene – along a major highway.
I repeated the experiment in the afternoon when I drove from my in-laws home to my parents’ home. Taking the opposite direction, Commonwealth was even more congested when I approached the Fairview Market area. Buses, jeepneys and tricycles practically took up 3 lanes, stalls, hawkers and pedestrians took up 2 lanes and there was only 1 left for all other vehicles to pass through. No one among those who clogged the highway seemed to care and I again saw no enforcers to mahage traffic. If there were, I’m sure they were somewhere else and definitely not doing their jobs.
It is both disappointing and frustrating that the traffic discipline program along Commonwealth went the way of ningas cogon. In fact, the MMDA seemed to have celebrated what they thought was success prematurely, even stating that they were to apply similar strategies to other major roads in the Metro. By the looks of the outcomes along Commonwealth, such efforts along other roads will eventually go the way of ningas cogon. Such results send the wrong message to motorists and pedestrians and reinforce the perception that the authorities don’t really mean business and that such programs are just for show. So far, it seems that this perception will continue to pervade along Metro roads unless the MMDA, the PNP and the respective local government units get their acts together. Again, it shows that going back to the basics remain the main challenge and overcoming the ningas cogon tendency the main obstacle for our authorities.
Suwapang
The Filipino or Tagalog translation of the words greedy or selfish seems much more appropriate to use as a term to describe what is arguably the most basic reason why our country is in a rut. It can also be used to describe why our transport systems and traffic is what it is at present. The term suwapang easily and comprehensively defines the way we drive vehicles, ride motorcycles, commute, operate transport services, and enforce or manage traffic. It is also applicable to the way we plan and build infrastructure.
Public utility vehicle drivers are suwapang when they cheat on fares for students and senior citizens, refusing to give the discounts mandated by law. The are suwapang when they race to overtake fellow drivers in order to get to passengers waiting along the roadside. They never mind the safety of their passengers or those in other vehicles around them. To them, the most important thing is to get ahead of everyone else even if in the end those waiting along the roadside or the stop weren’t even heading their way. PUV drivers are suwapang, too, when they cut trips, making it difficult for passengers to get a ride home, to school or to their workplace. Suwapang is also the word appropriate for those refusing passengers for one reason or another. Public transport is, after all and definitely above its business aspect, a service.
Motorcycle riders are suwapang when they disregard traffic rules and regulations and weave in traffic, placing themselves and others at risk of getting involved in a road crash. They are suwapang when they carry more than one other rider (angkas) as what we commonly observe along many roads and with children sandwiched between their parents who seem to not understand the risk they are exposing their children and themselves to.
Tricycle drivers are suwapang when they travel along national roads or highways, fully aware that they are prohibited from doing so. They are suwapang when they charge exorbitant fare for “special” rides. The word also applies when they clog streets due to their numbers, many probably even illegal or colorum units. There are actually too many of them in many areas but they are still steadily increasing as newer tricycles are accommodated or tolerated by the ones supposed to be regulating them.
Transport operators are suwapang when they cheat on vehicle maintenance and place passengers at risk of being involved in a road crash. Poorly maintained vehicles also lead to higher fuel consumption and would definitely have a significant impact on operational costs that is part of the basis for setting fare rates. Suwapang is the word for those who operate gas guzzlers while claiming that it is wholly the rising fuel prices that are to blame for their rising fuel costs. These operators unfairly lobby for increasing fare rates while not doing their part on maintaining their vehicles, effectively imposing the fuel inefficiencies of the vehicles on the riding public.
Commuters are suwapang when they pressure drivers to stop where public transport are restricted from loading and unloading passengers. They do not care about the driver being apprehended and probably paying up for the violation. Commuters are also suwapang when cheating the driver for fares like when they choose or insist to hang on to jeepneys and not pay fares or pretend that they have paid when they have not. They are also suwapang for waiting on the road rather than the road side. They cause congestion because they occupy space intended for vehicles and in effect reduce the capacity of these roads.
Private vehicle drivers are suwapang when they overspeed and weave aggressively in traffic. They do not care about the safety of others nor about rules and regulations that are in place for everyone’s well-being. They are suwapang for demanding more road space when the collective volume of private vehicles are the real cause of congestion, especially when one realizes most vehicles carry only 1 or 2 passengers including the driver. It is inefficient use of road space at best aside from being a waste of fuel and unfriendly to the environment due to the emissions they produce. They are also suwapang when they do not have off-street parking where they reside and leave their vehicles to occupy precious road space, reducing capacity and contributing to traffic congestion in the process. One is also suwapang if they still have sirens (wang-wang) installed on their vehicles for their convenient use, despite the no wang-wang policy being implemented.
Traffic enforcers are suwapang when they extort money from drivers instead of issuing them the traffic ticket for legitimate violations of traffic rules. They are more suwapang when they unscrupulously apprehend motorists for what the former claim were violations by the latter but are actually not, in order to eventually extort money from them. These are quite awkward situations since either or both parties may not even be knowledgeable of the rule or rules that were violated in the first place, if any. Enforcers are also suwapang for extorting money or tong from drivers of goods or freight vehicles. Their activities only lead to an increase in the prices of commodities such as rice and vegetables.
Our government leaders, planners and engineers are suwapang for poorly planned, designed and prioritized infrastructure. Perhaps some are more concerned with their cuts in the budget for transport infrastructure than the quality of a project and its overall benefit to the public. They are suwapang because they choose to benefit themselves (sarili) over the good of their country (bayan), securing their pockets and their own futures when they should be securing the future of the nation as is required of those in public service. They are suwapang because they hinder the nation’s development and deprive people of an efficient transport system for both mobility and accessibility.
Some in the private sector are considered suwapang for collaborating with politicians, planners and engineers described previously. They can also be considered suwapang for pushing for projects that should not be prioritized but are assessed to be so due to their connections with people in power. They, too, hinder this country’s development and deprive people of the efficient system they deserve.
So the inevitable question is – Are you swapang?
Discipline along a killer highway
Commonwealth Avenue in Quezon City was given a tag as a killer highway due to the frequent occurrence of road crashes along the road, many of them resulting in fatalities. Only last December, a retired judge was about to cross the highway on his vehicle, his wife (a retired teacher from a prestigious science high school) with him as they were heading to church. It was very early in the morning since they were going to the Simbang Gabi or night mass – a tradition in the Philippines during the Advent Season leading up to Christmas Day. Despite probably signalling and their being cautious enough, their vehicle was hit by a speeding bus. The driver of the bus was to claim later that he used his lights and horns to warn the judge against crossing. There was no mention if the bus driver attempted to slow down, the safest thing to do when driving at night and knowing that there are many crossings along the road he is traversing. In fact, this should be the first thing on the mind of anyone aware and conscious about safe driving.
There are many incidents like the one above and not just along Commonwealth or other Metro Manila road. Road crashes occur along many of our national and local roads everyday and the casualties just pile up, and many are often just treated as statistics especially when nothing is done to address the issue. Such road crashes occur due to many factors that are usually categorized into human, vehicle or environment-related. Most often, as findings in the Philippines indicate, it is the human factor that results in a road crash.
Driver error, poor maintenance of vehicles, and ill-designed roads can all be traced to human shortcomings. Environmental factors are also ultimately rooted on the human element. Speeding is one thing and aggressive driving is probably another but altogether general driver behavior along Philippine roads are clearly a manifestation of a lack of discipline and not necessarily the lack of skill, although the latter is also a significant factor if one is to focus on public transport and trucks.
There are few exceptions and it seems “few” is a relative term often leading to the example of Subic. At Subic, we always wonder how and why drivers seem to be disciplined. Some say it is because of the fines or penalties for traffic violations. Others say it is psychological and a legacy of the base being previously under the US military. I would say it is more of the traffic rules and regulations being enforced firmly and fairly in the free port area. I would add that motorists and pedestrians have embedded this in their consciousness such that there is something like an invisible switch turning on when they drive in Subic and turning off once they are out of the free port.
For a corridor like Commonwealth, perhaps the best example to emulate would be the North Luzon Expressway (NLEX). Along that highway, its operators the Tollways Management Corporation (TMC) have established a strict regimen of enforcement and have applied state of the art tools for both monitoring and apprehension. These tools include high speed cameras equipped with speed radars that detect speeds and capture on photo cases of overspeeding. Photos are used as evidence upon the apprehension of the guilty party at the exit of the expressway.
The current campaign along Commonwealth is premised on the strict enforcement of a 60 kph speed limit along the arterial and the designation of PUV lanes (e.g., yellow lanes) along the length of the corridor. The initiative would be manpower intensive and features novel tools such as the use of placards, loudspeakers and public relations in order to encourage motorists and pedestrians to follow traffic rules and regulations. The results as of today look promising and there has been a significant reduction in speeds and general compliance for PUVs serving the corridor. The numbers might be misleading if we attempt to conclude about the success of the program now. Perhaps the more reliable statistics would come out after the campaign has been implemented and the effort sustained over a month’s time. Nevertheless, it gives us a nice feeling to see less speeding and less weaving among vehicles that were once observed as though they were driven along a race track. It would be nice to once and for all kill the “killer highway” tag and make Commonwealth an example of how traffic management should be implemented. We are always searching for examples of good if not best practices that can be replicated elsewhere. If we succeed in the “Battle of Commonwealth” then perhaps we could eventually win the “War Against Irresponsible Driving and Jaywalking.”
Caught (up) in traffic
